Chapter 2 Huru Frameset ( rim brake ) - Gloss Black

If the joy of being in the zone and scaling gradients that pushes you to the limit is what stirs you, then the HURU is the perfect tool for the job. HURU means “feather” in Maori and its classic contours cleverly disguise the engineering needed to develop a high-performance lightweight frame.

As the saying goes, “what goes up must come down”, so whilst the HURU has you covered for the former, the HURU also excels in the latter so that you can descend confidently on a frame platform that has cornering dexterity that matches its climbing prowess.

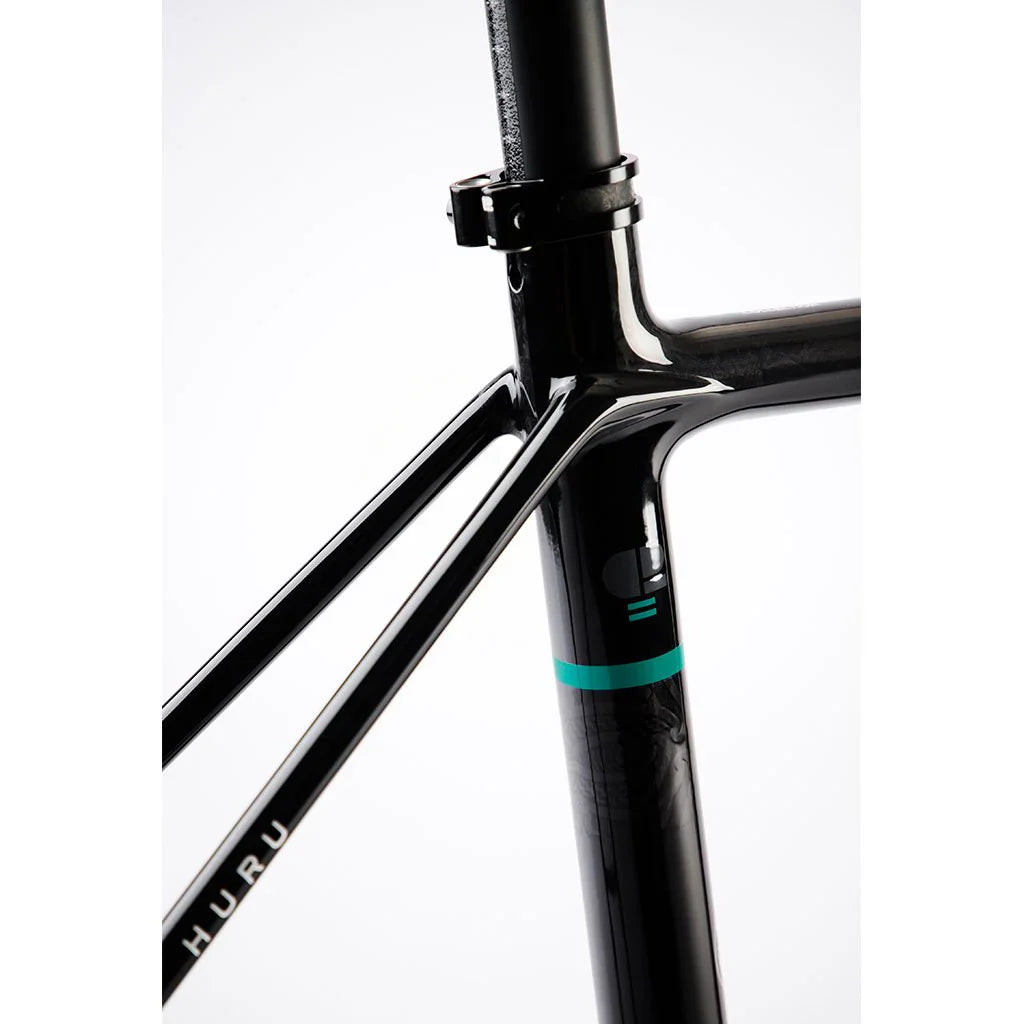

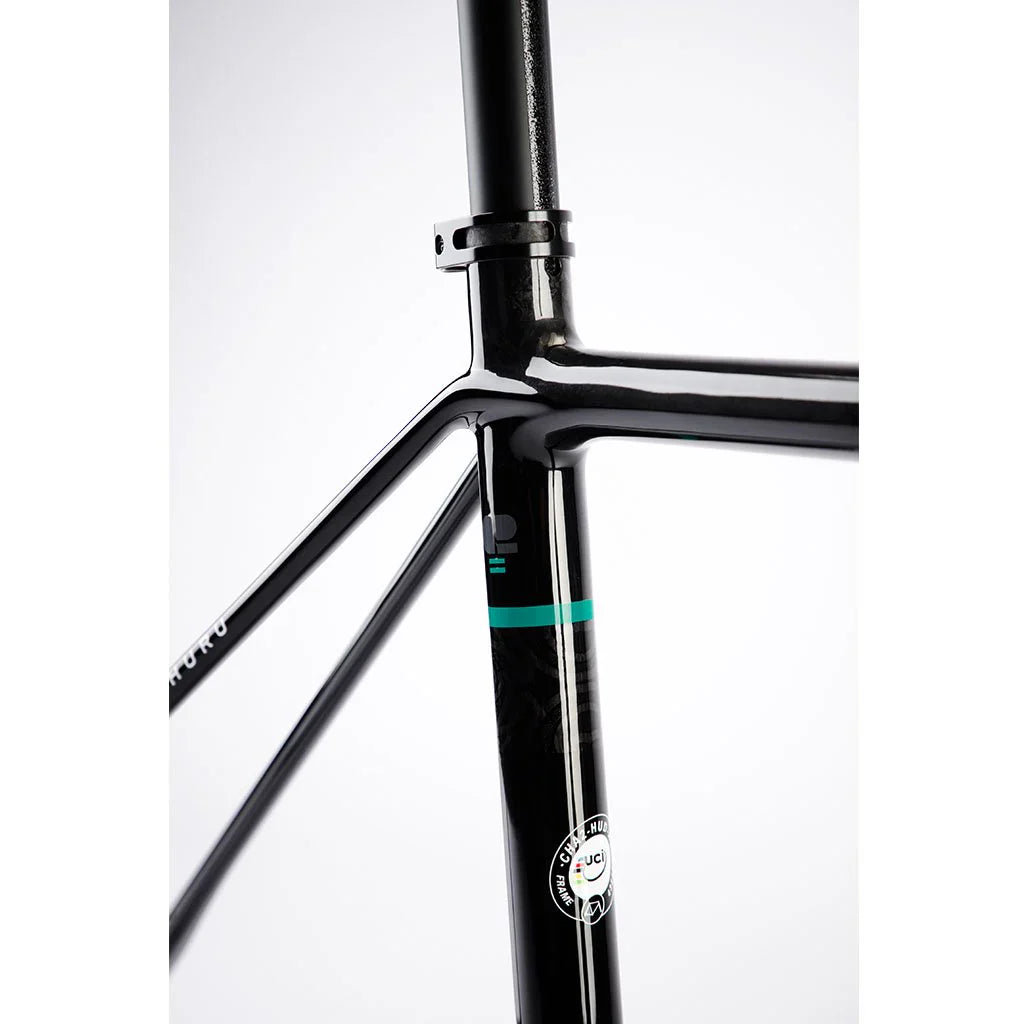

The pencil-thin Seatstays that dampen road vibrations is beautifully merged into the Seattube and Toptube junction that supports our lightweight TUMU 27.2mm seatpost.

Available in Rim (Direct Mount) and Disc versions and using over 300 unique pieces of Pre-Preg Carbon Fibre carefully laid into stainless steel molds by hand, the HURU is the ultimate alpine machine.

FEATURES/BENEFITS

Lightweight Design: Improved Climbing Performance High Modulus Carbon (Headtube): Increased Cornering Performance

High Modulus Carbon (BB): Increased Power Transfer

Rim & Disc Options: Both Options Available

Frameset Only: Bespoke & Personal

Limited Edition: Exclusivity

Frame Specs:

• Carbon: Toray® T1000, T800 and 3K Directional Carbon
• Frame 5 Sizes: XS, S, M, L & XL
• Fork 2 Sizes: XS, S (53mm offset) and M, L, XL (43mm offset)
• Frame Weight: 789g (Rim) & 819g (Disc) Size M +/- 3%
• Fork: 379g (Rim) & 389g (Disc) Uncut +/- 3%
• Seatpost: Reversible Seatpost 219g +/- 3%
• Stem: Not included
• Headset: CHAPTER2 1-1/8”
• BB: Press Fit BB86.5
• Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
• Battery Type: Di2 SM-BTR-2 and EPS V3 Battery compatible
• Tire Clearance: 28mm
• Brake Type: Direct Mount Type
• Safety Standard: EN ISO 4210:2014
• UCI Accreditation: UCI Approved

Torque Specs:

• Saddle Rail: 8Nm
• Integrated Seatclamp: 6Nm
• Front Derailleur Hanger: 3Nm
• Rear Derailleur Hanger: 2Nm
• BB Cable Guide Cover: 1Nm
• Water Bottle Cage Bolts: 3Nm
